Model series 8132
![[Translate to English:] Zylindrische Einzel-Mutter mit Befestigungsgewinde, Umlenkleiste, beidseitig Abstreifer](/fileadmin/_processed_/c/5/csm_8132-prinzip-kugelgewindetrieb-kugelumlaufspindel-kugelrollspindel-gerollt-kundenspezifisch-anschluss-custom-rolled-ball-screw_cylindrical-single-nut-thread_fc76d1b4c5.png)
Nut with connecting thread with multiliner, wiper on both sides
Model series 8142
Nut with connecting thread with multiliner, wiper on both sides, two or more threadstarts
General catalog for download
![[Translate to English:] Zylindrische Einzel-Mutter mit Befestigungsgewinde, Umlenkleiste, beidseitig Abstreifer](/fileadmin/_processed_/c/5/csm_8132-prinzip-kugelgewindetrieb-kugelumlaufspindel-kugelrollspindel-gerollt-kundenspezifisch-anschluss-custom-rolled-ball-screw_cylindrical-single-nut-thread_c5918b2cb9.png)
A benefit of a rolled ball screw with connecting thread nut is the higher rigidity and accuracy. In addition, the connecting thread nut enables an easy assembly and disassembly of the system. For higher accuracy and service life requirements, we recommend ground ball screws,optionally with ETA+ technology for enhanced energy efficiency.
Technical data and dimensions
The load ratings listed here apply to accuracy class T5. Use factor 0.9 for T7 and factor 0.7 for T10 in order to reduce load ratings.
Further specifications, dimensions and information on service life calculation and lubrication can be found in the general catalog for rolled ball screws.
| Label | dN [mm] | P [mm] | i Ball circles | L [mm] | ø D1 [mm] | Dyn. load capacity [kN] | Stat. load capacity [kn] |
|---|---|---|---|---|---|---|---|
| 8132/5.16.3,5.4 | 16 | 5 | 4 | 57.5 | 32 | 12.9 | 16 |
| 8132/5.20.3,5.4 | 20 | 5 | 4 | 57.5 | 38 | 15.5 | 22.3 |
| 8132/5.25.3,5.5 | 25 | 5 | 5 | 63.5 | 42 | 21.2 | 35.9 |
| 8142/10.25.3,5.4 | 25 | 10 | 2 + 2 | 61 | 42 | 16.1 | 25.5 |
| 8132/5.32.3,5.5 | 32 | 5 | 5 | 65.5 | 52 | 24.8 | 49.7 |
| 8132/10.32.6.4 | 32 | 10 | 4 | 85 | 52 | 39.4 | 60.8 |
| 8132/5.40.3,5.5 | 40 | 5 | 5 | 67.5 | 58 | 27.5 | 63.6 |
| 8132/10.40.7,5.5 | 40 | 10 | 5 | 105.5 | 65 | 71.5 | 118.9 |
| 8132/10.50.7,5.6 | 50 | 10 | 6 | 118 | 78 | 95.6 | 186.5 |
| 8132/10.63.7,5.6 | 63 | 10 | 6 | 118 | 92 | 107.4 | 241.3 |
| 8132/10.80.7,5.6 | 80 | 10 | 6 | 126 | 120 | 123.8 | 328.6 |
- Shafts and nuts with standard dimensions shown here are available on short notice.
- Additional sizes, ball screws assembled according to drawing, including machined journals with assembled nuts are available upon request.
- Special dimensions not listed here, as well as corrosion-resistant ball screws, are also available upon request.
Dental Technology
Outstanding corrosion-resistant design, ceramic ball versions, designed for wet or dry operation, custom lubrication or lubricant-free
Woodworking Industry
Optionally with ground shaft outer diameter and special wipers.

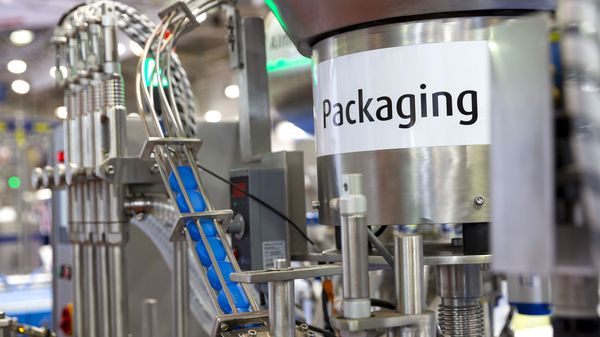

Automation
Cost-optimized, special lubrication e.g. grease for long-term lubrication, smooth-running, high-temperature, low-temperature and food-grade grease
